BF-9700 7W UHF IP67 Waterproof Radio

Output Power: 7W(H)/5W(M)/1W(L)
Frequency Range: 420.00-450.00MHz
IP67 waterproof and dustproof

BF-9700 is a dustproof and waterproof two-way radio. After being dropped into one meter underwater for 30 minutes, the radio still works very well. It ensures BF-9700's reliability in wet environments. No matter where you are, swimming pool or desert, you may enjoy with BF-9700!

What is IP67?
IP means Ingress Protection;
6: Dust Tight. No ingress of dust; complete protection against contact.
7: Immersion up to 1m. Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of pressure and time (up to 1m of submersion).

Functions
Waterproof Dustproof IP67
Incorporates 105 codes "DQT" and 50 privacy codes "QT" programmable
VOX
Alarm function
Broadband (Wide) / Narrowband (Narrow) selectable
High power / low selectable
Battery saving function "SAVE"
Timer transmission "TOT" programmable
Selecting the Scan Mode
Inspection, stun, kill and decoding
Distant urgency alarm, SOS function
Function Busy Channel Lock "BCL"
Level Threshold "Squelch" adjustable from 0 to 9
Transmit 1750 Tone
Channel frequency-report

Specifications
Frequency range: UHF 400-520 MHz 65MHz-108MHz (only commercial FM radio reception)
Memory channels: Up to 16 channels
Frequency stability: ±2.5ppm
Frequency step: 12.5/25 KHz
Antenna impedance: 50Ω
Operating temperature: -20℃ to +60℃

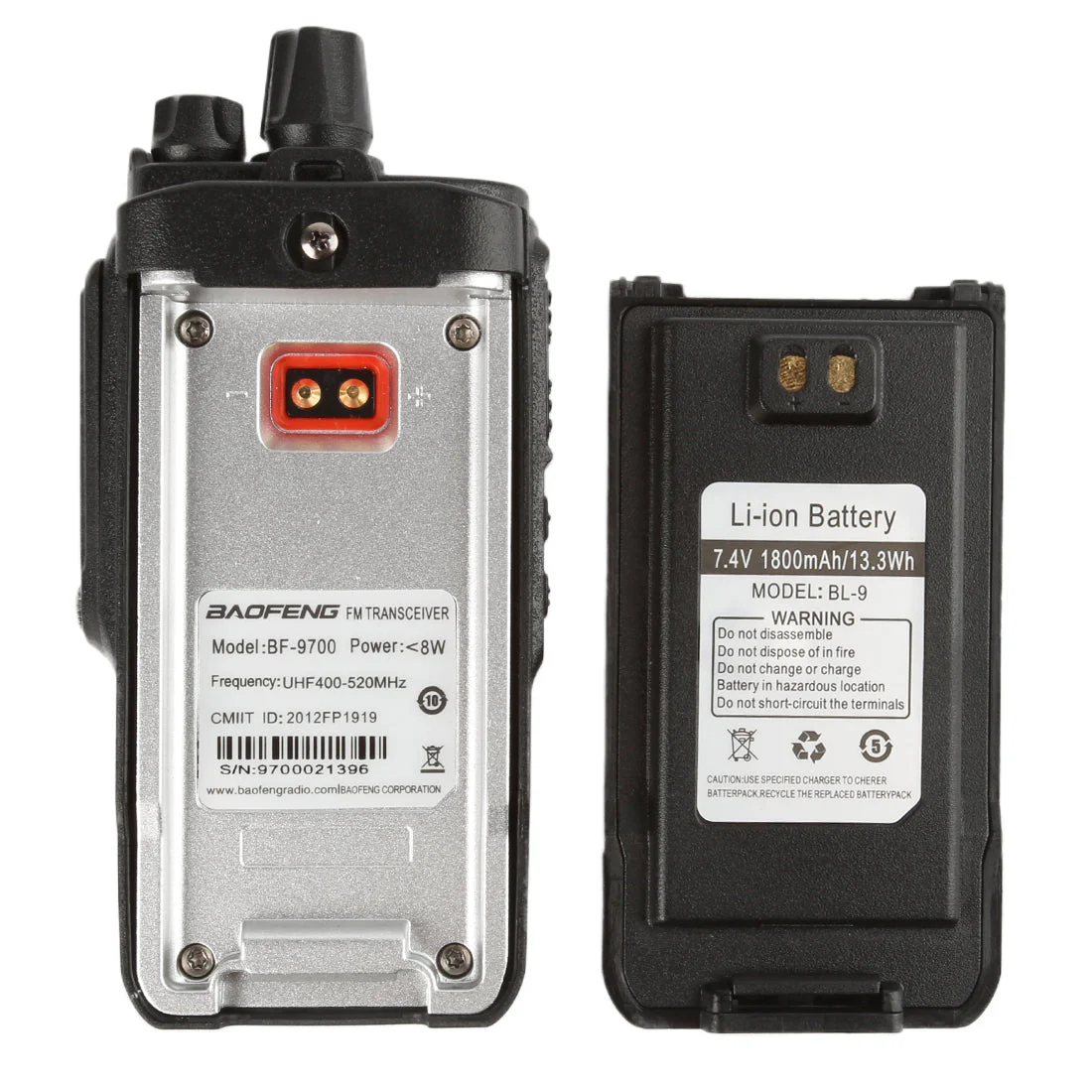

Supply voltage: Rechargeable lithium-ion mAh 7.4V/1800
Consumption in transmission: ≤1.5A
Maximum deviation: ≤±5KHz/≤±2.5KHz(W/N)
Spurious power: ≤7.5uW
Spurious emissions: ≤-65dB/≤-60dB
Signal to noise ratio: ≥-45dB/≥-40dB(W/N)
QT/DQT Frequency offset: 0.7±0.1KHz/0.4±0.1KHz(W/N)
Modulation sensitivity: 8-12mV
Dimensions: 62.5x123x36mm
Weight: appr 252g
　

Note

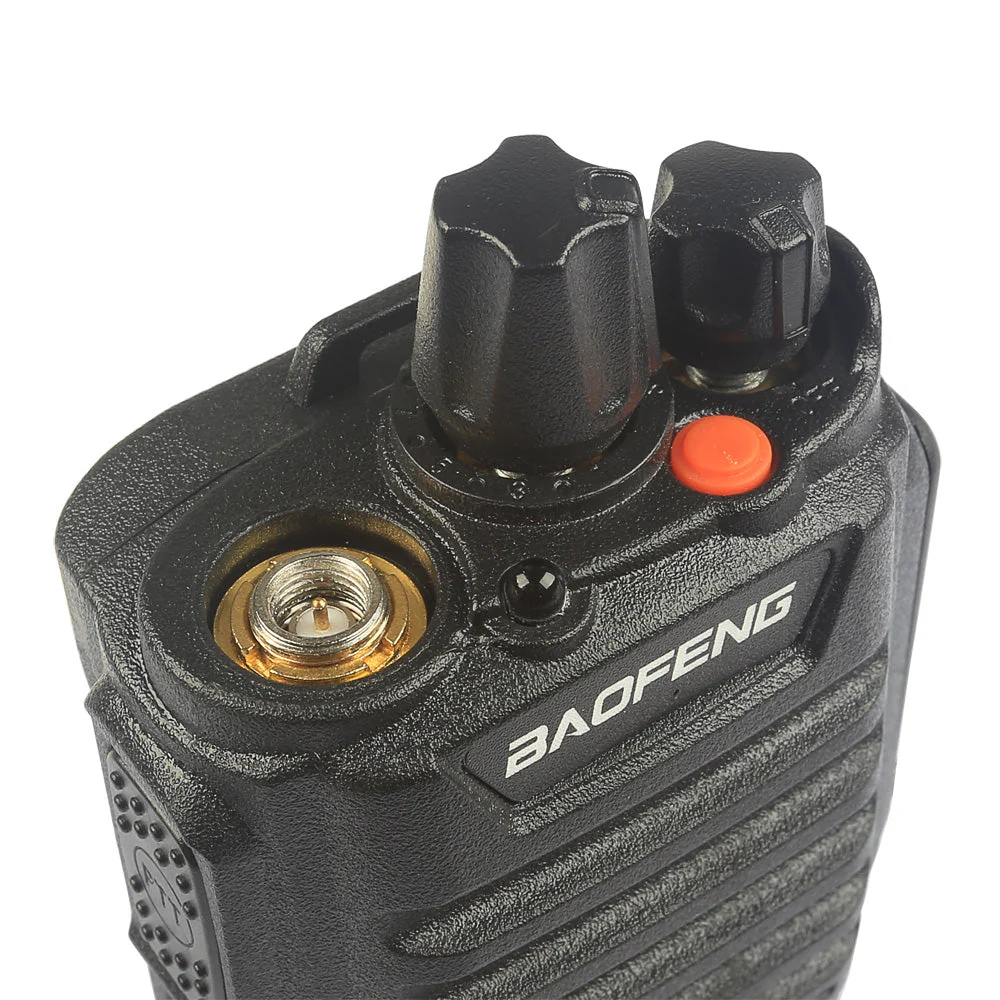

Antenna Type: Compatible with SMA-Female Antenna
Earpiece & Programming Type: Special waterproof earpiece & cable
